General to Heavy Duty Castors 200-750kg ~ 440-1650lb
O Series450kg 990lb
* Sizes: 100mm (4”), 125mm (5”), 150mm (6”) & 200mm (8”)
* Tyre materials: blue rubber, nylon & polyurethane
* Hub width: 60mm
Very Heavy Duty Castors >750kg 1650lb
V Series 2450kg 5400lb
* Sizes: 150mm (6”) & 200mm (8”)
* Tyre Materials: High Impact Polymer & Polyurethane on
Cast Iron
* Hub Width: 89mm
Very Heavy Duty Castors >750kg 1650lb
X Series 1000kg 2200lb
*Sizes: 100mm (4”), 125mm (5”) & 200mm (8”)
* Tyre Materials: Cast Iron & Polyurethane on Cast Iron
Uh
* HubWidth: 62mm
General to Heavy Duty Castors 200-750kg ~ 440-1650lb
Y Series360kg 795lb
* Sizes: 200X50, 250X4, 300X4, 350X4 & 400X8
* Tyre materials: black rubber
* Hub width: 50-100mm
Semi-Pneumatic Puncture-Proof Wheels
The wheels are puncture proof and provide the greatest performance and reliability.
Traditional Steel Centred (tube type)
These wheels can be retrofitted with tubes if original tyres are punctured.
Steel centred wheels provide higher load capacity and reliable long life performance.
Traditional Plastic Centred (tube type)
Plastic centred wheels are the low cost alternative,with excellent performance in wet and corrosive environments.
07N Wheel Series
TECHNICAL DESCRIPTION
* Solid Rubber Black Tyre
* Shore A80
* Plastic Wheel Centre
* Mechanical Internal Spring Pin Locking
* Long Nose
361 Light Castor Series
TECHNICAL DESCRIPTION
* Polyamide Frame Light Grey RAL 7001/Dark Grey TAL 7011
* Zinc Passived/Yelow Chrome Plated Mounting Plate
* Double Ball Bearing in Swivel Head
* Total Weight 420g (A Type) / 465 (B Type)
AREAS OF APPLICATION
* Air-craft Catering Trolleys
* Light Wooden Furniture

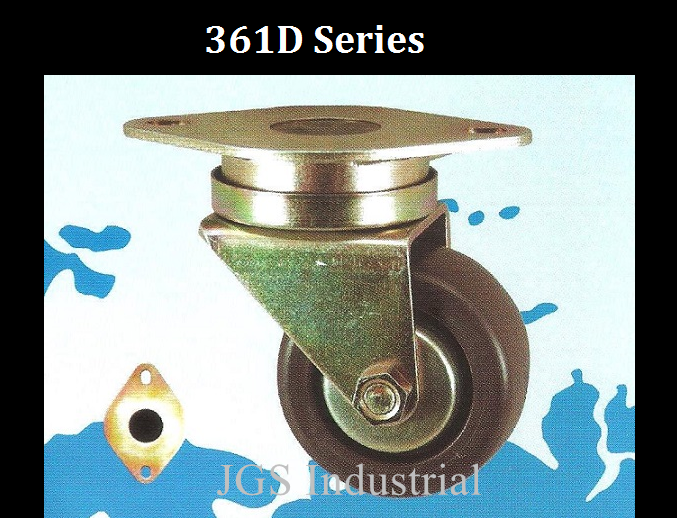

361D Series
TECHNICAL DESCRIPTION
* Wheel Material-Polyflex
* Wheel Bearing-Needle Bearing; Thread Guards Standard
* Raceway-Fully Sealed Raceways for Low Maintenance & Protection of the Swivel Head in Outdoor Environment
AREAS OF APPLICATION
* Airlines
* Conveyor
399 Series
HOUSING
* Die-Cast Aluminium Load Bearing
* Preision Ball Bearing in the Fork Head
GEARING FUNCTION
* Smooth 4-eay Selection Mechanism, Integrated Automatic Directional Local, Patent-Registered Positive Wheel Locking Brake
WHEEL
* Diameter 150mm (TPU Tyre (Also Electrically Conductive)
* Load Capacity 150kg
400 Series
MODERN & SUPERIOR IN QUALITY
* The 400 Series Castors is designed with Polyamide Shell Cover that is Modern & Well-Engineered. Excellent Performance that meets Various Application.
HOUSING DESCRIPTION:
* Twin Wheels Fitted with 28K 150V, PU Thread
* Polyamide Cover with RAL 9010
